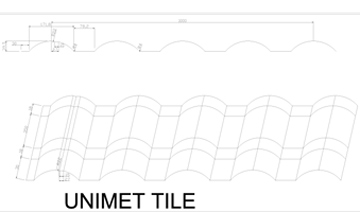

Home->>Product ->> Unimet Tile Specification

Specification
Trough Depth 28.50 mm
Pitch Centre to Centre 177.5 mm
Tile Depth
12 mm
Sheet Width
810 / 987.50 mm
Covered Width 710 / 887.50 mm
Tile Pitch 100 – 500 mm
Length Up to 6 Meters
Thickness 0.40 mm to 0.80 mm
Substrate
Material
Yield
Colour
Coating
Pre-painted Galvanised
220 - 350 Mpa
As per shade
120 to 275 gsm
Pre-Painted Galvalume
350-550 Mpa
As per shade
150 gsm
Pre-Painted
180 Mpa
As per
In its Alloy
