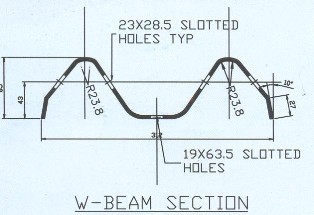

W-beam
Cold Roll Formed Section
* 3mm /2.7 mm thick HR coil
* Fe 410 / 510 Grade Steel
Post
Anchored to foundation on Ground & Bridge
* Channel Section of 150 * 75* 5 mm
*5 mm thick HR coil
*Fe 410 /360 Grade Steel
Spacer
Buffer between Post & W-beam
* Channel Section of 150 *75 * 5 mm
* 5 mm thick HR Coil
* Fe 410 /360 Grade steel
Fasteners
* Hot Dip Galvvanized or Electro Galvanized Bolts, Nut & Washers conforming to IS:1367 of Grade or IS: 1364 MS .
* 16 mm /40 mm long Button Head Bolts of W-Beam to W-Beam & post to spacer connection 16 mm *40 mm Hexbbolt or 20 mm / 40 mm long Hexbolt. |
