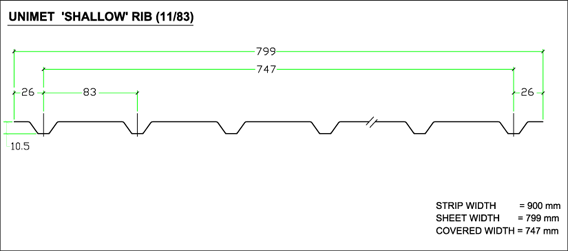

Home->>Product ->> Unimet Shallow Rib Specification
GEOMETRICAL PROPERTIES

SL. No

BASE METAL THICKNESS

FINISHED THICKNESS
AVG WEIGHT KG
MOMENT OF INERTIA
SECTIONAL MODULE

MM
MM
PER RM
CM4/M
CM3/M
1.
0.18
0.49
1.32
0.30
0.56
2.
0.20
0.22
1.46
0.33
0.63
3.
0.22
0.24
1.64
0.37
0.69
4.
0.28
0.33
1.99
0.47
0.87

ALLOWABLE LOAD (UDL) IN Kg/M2

BASE MATERIAL THICKNESS     MM
SPAN IN METER
1.00
1.20
1.40
1.50
1.60
0.18
98
68
50
43
38
0.20
108
75
55
48
42
0.22
119
82
60
53
46
0.28
151
104
77
67
58
